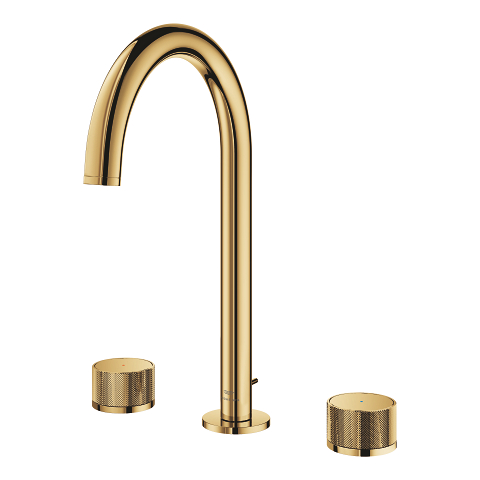

Atrio Private Collection Three-hole basin mixer 1/2″ L-Size

The GROHE Atrio Private Collection 3-hole basin mixer in L-size in stylish Cool Sunrise – choose the control elements to suit your taste and give your bathroom a personal touch!

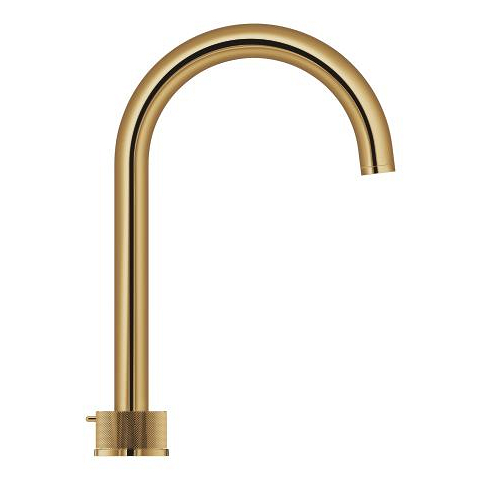

Immerse yourself in a world of elegance and beauty with the GROHE Atrio Private Collection, part of our exclusive SPA portfolio – combining timeless aesthetics, the latest technology and the highest quality, manufactured in Germany. Thanks to the scratch-resistant PVD coating, the elegant Cool Sunrise surface remains flawless and resistant for a long time. With this GROHE Atrio Private Collection 3-hole basin mixer in L-size, you not only get an aesthetically pleasing design, but also high-quality ceramic headparts for smooth and stepless operation. What's more, water consumption is limited to an environmentally friendly 5 l/min (at 3 bar) without compromising on performance. The generous height of 291mm between the spout and washbasin ensures plenty of freedom of movement and therefore a comfortable washing experience. For greater flexibility, the delicate curved spout rotates (150° or 360°), but can also be locked in place if required. Thanks to the slim rod at the back of the tap, you can easily open and close the drain without getting your hands wet. You have the choice of equipping this mixer tap with the following inserts for knob controllers: 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone) GROHE Atrio Private Collection – for a personal touch in the bathroom.
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- swivel tubular spout with mousseur and stop limiter
- adjustable swivel area 0° / 150° / 360°
- pop-up waste set 1 1/4"
- pressure-proof, flexible connection hoses between spout and side valves
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Cap | 101300GL00 |
2 | Handle | 101299GL00 |
3 | Ceramic headpart, 1/2" | 45882000 |
3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
4 | Coupling nut 1/2" | 1290100M |
4.1 | Fibre seal dia. Ø 18,5 x Ø 12 x 2 | 0138900M |
5 | Flexible connection hose | 45704000 |
6 | Fixing clamp | 6554100M |
7 | Waste set 1 1/4" | 28910GL0 |
7.1 | Plug | 07182GL0 |
7.2 | Eccentric rod | 07052000 |
8 | Pop-up rod | 65196GL0 |
9 | Spout | 101298GL00 |
9.1 | Flow straightener | 48408000 |
9.2 | Safety ring | 4826600M |
9.3 | Sealing washer | 0128500M |
10 | Ceramic headpart, 1/2" | 45883000 |
10.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |

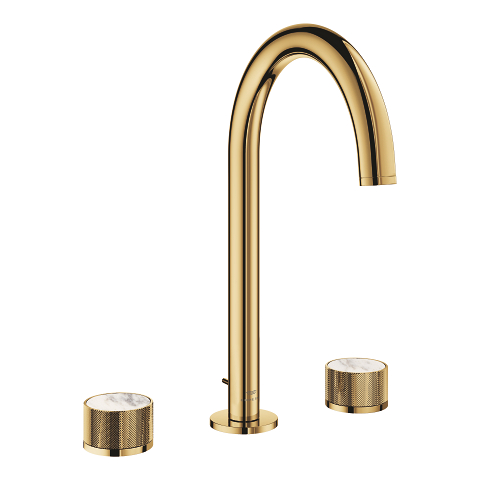

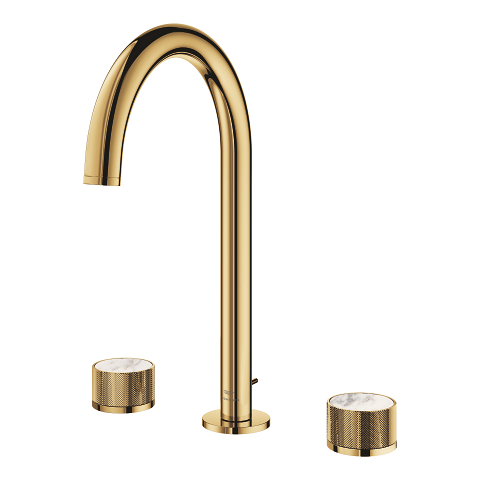

11 | Inlays made from White Attica Caesarstone material | 48460000* |

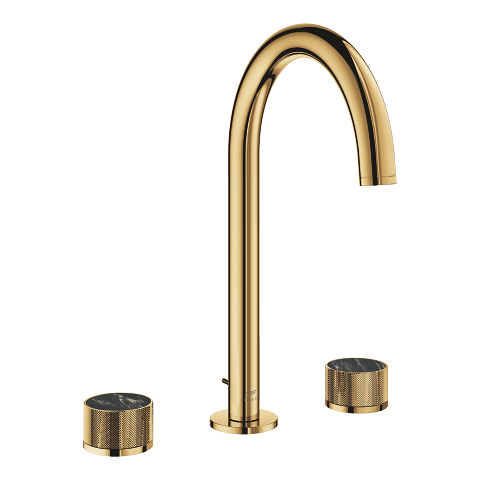

12 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
13 | Eccentric rod | 07341000* |
14 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
