Atrio Private Collection Three-hole basin mixer M-Size

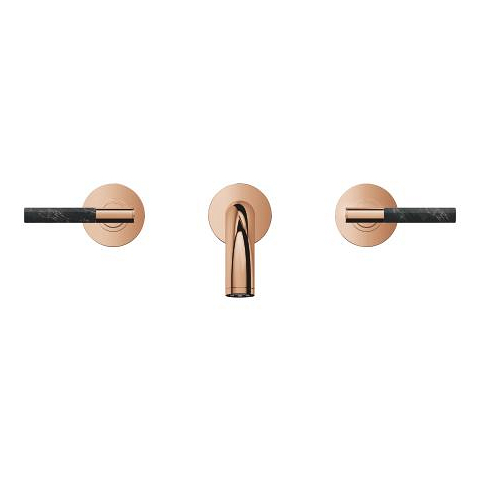

With the GROHE Atrio Private Collection 3-hole basin mixer in M-size in trendy Warm Sunset, you can add a personal touch to your bathroom by choosing the control elements to suit your taste.

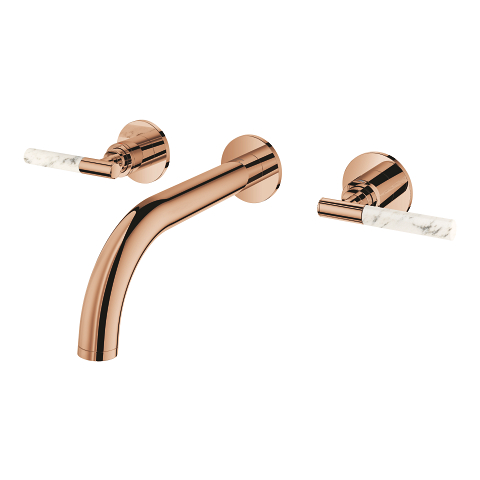

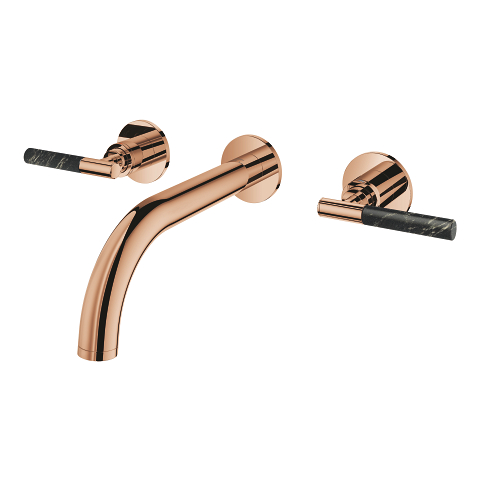

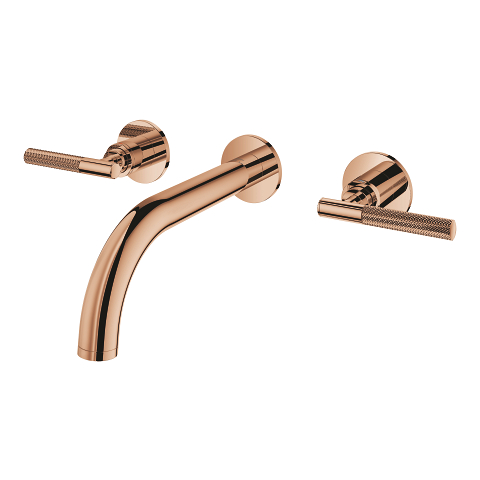

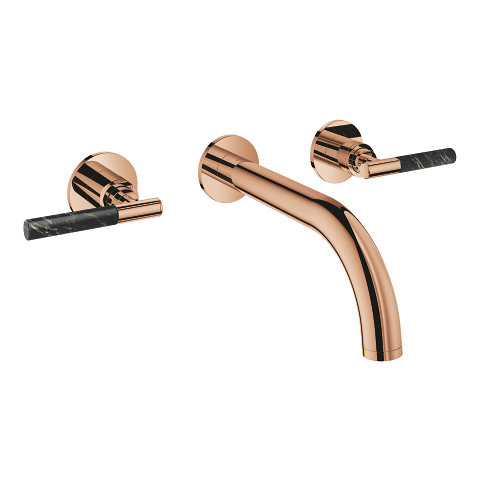

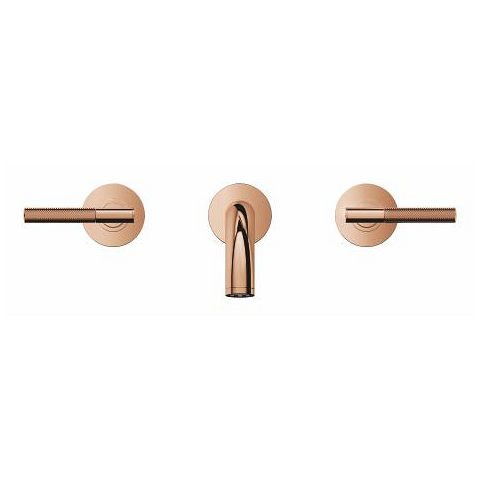

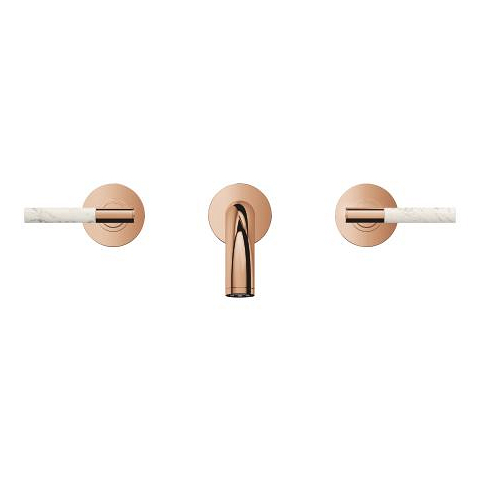

The GROHE Atrio Private Collection is a perfect combination of grace, modern technology and the highest quality standards, manufactured in Germany. Its delicate design of clear lines and rounded shapes can also be individually combined in a wide range of colours and materials. With the durable and robust PVD coating, the stylish Warm Sunset surface is perfectly protected from scratches and dirt. The GROHE Atrio Private Collection 3-hole basin mixer in M-size not only impresses with its aesthetic design, but also with its high-quality ceramic components for smooth and stepless operation. The water consumption is limited to 5 l/min (at 3 bar) in an environmentally friendly way, without compromising on performance. The reach of the spout is 180 mm. You have the choice of equipping this mixer tap with the following lever handles in Warm Sunset: 48458DA0 (White Attica Caesarstone), 48459DA0 (Vanilla Noir Caesarstone) and 48646DA0 (knurled structure). To be able to use the wall-mounted 3-hole basin mixer in M-size, you need the matching GROHE concealed body (29025002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
- wall mounted

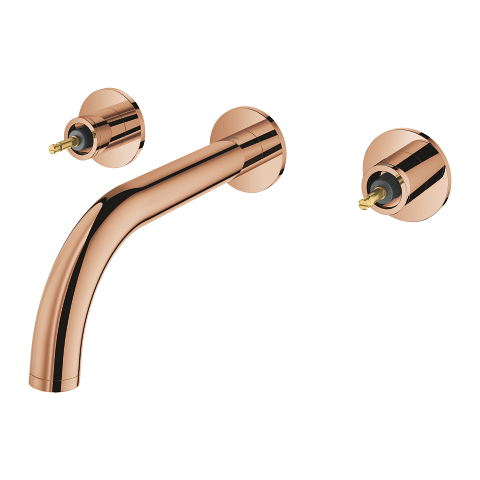

- set for final installation for
- 29 025 002
- valves hot/cold with ceramic headparts 1/2" - 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- centre distance 200 mm
- projection 180 mm
- for stick handles
- to be combined with stick sets 48 458, 48 459 or 48 646, please order separately
- without roughing-in set 29 025 002 (please order separately)
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Connection nipple | 1013459990 |

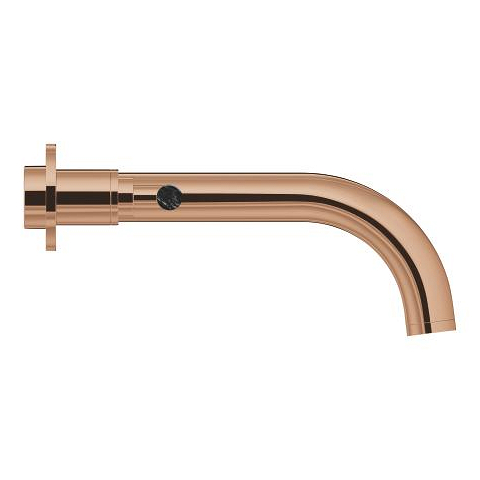

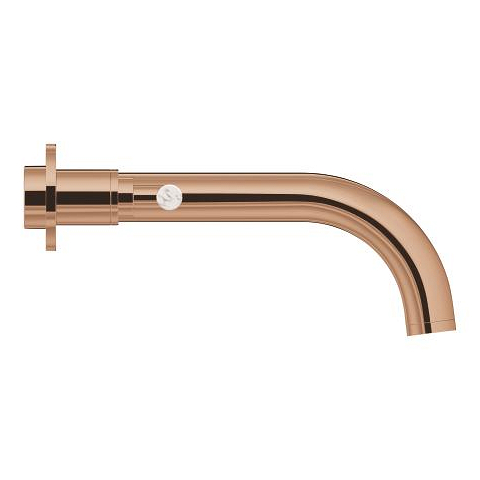

2 | Spout | 101344DA00 |
2.1 | Flow straightener | 48408000 |
3 | Extension for spindle | 1013469990 |
4 | Escutcheon | 101343DA00 |
5 | Decorative ring | 101296DA00 |
6 | Cap | 101300DA00 |
7 | Handle | 101347DA00* |
8 | Knurled sticks | 48646DA0* |
9 | Inlays made from White Attica Caesarstone material | 48460000* |
10 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
