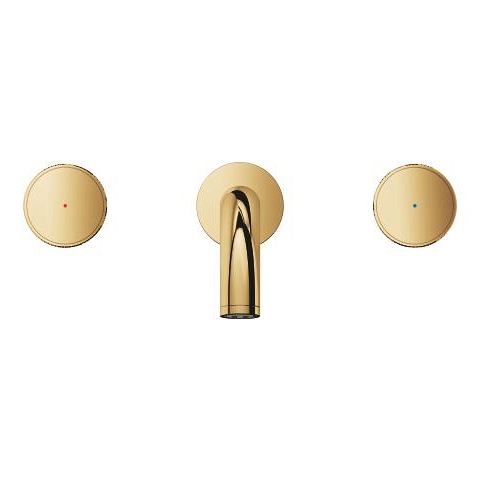

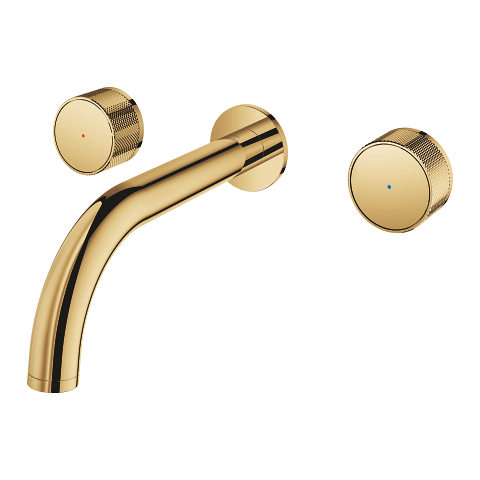

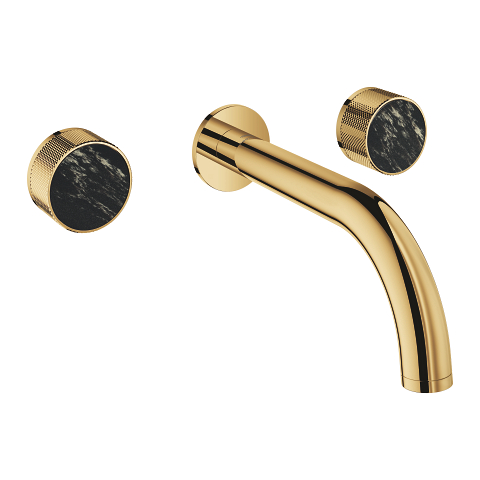

Atrio Private Collection Three-hole basin mixer M-Size

The GROHE Atrio Private Collection 3-hole basin mixer in M-size in stylish Cool Sunrise – choose the control elements to suit your taste and give your bathroom a personal touch!
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. With the durable and robust PVD coating, the stylish Cool Sunrise surface is perfectly protected from scratches and dirt. The GROHE Atrio Private Collection 3-hole basin mixer in M-size not only impresses with its aesthetic design, but also with its high-quality ceramic components for smooth and stepless operation. The water consumption is limited to 5 l/min (at 3 bar) in an environmentally friendly way, without compromising on performance. The reach of the spout is 180 mm. Customise your mixer tap with the knob controller inserts – you can choose between 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone). To be able to use the wall-mounted 3-hole basin mixer in M-size, you need the matching GROHE concealed body (29025002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
- wall mounted
- set for final installation for
- 29 025 002
- valves hot/cold with ceramic headparts 1/2" - 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- centre distance 200 mm
- projection 180 mm
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
- without roughing-in set 29 025 002 (please order separately)
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Connection nipple | 1013459990 |

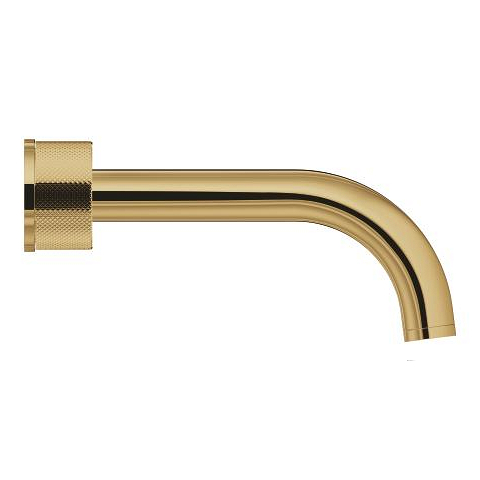

2 | Spout | 101344GL00 |
2.1 | Flow straightener | 48408000 |
3 | Handle | 101347GL00 |
4 | Cap | 101300GL00 |
5 | Extension for spindle | 1013469990 |

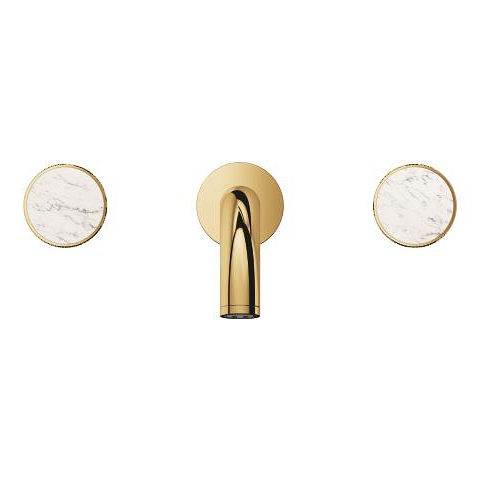

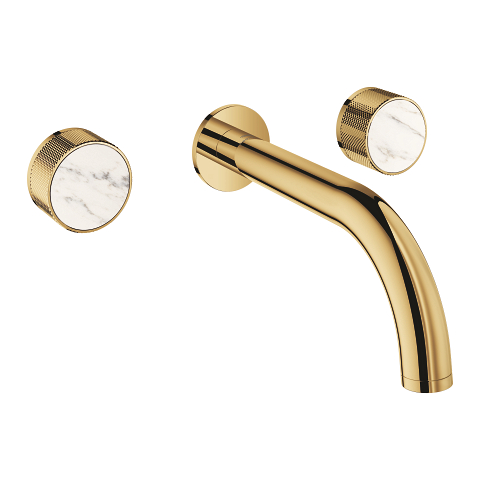

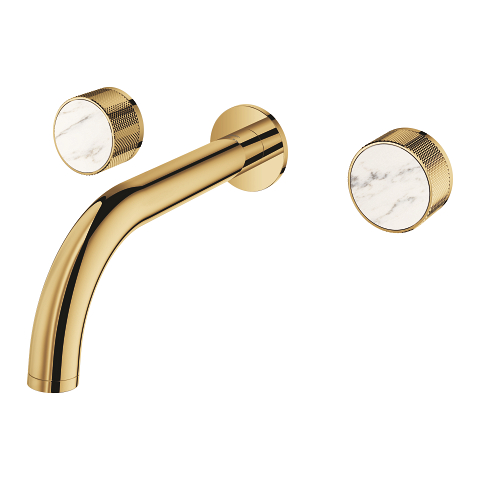

6 | Inlays made from White Attica Caesarstone material | 48460000* |

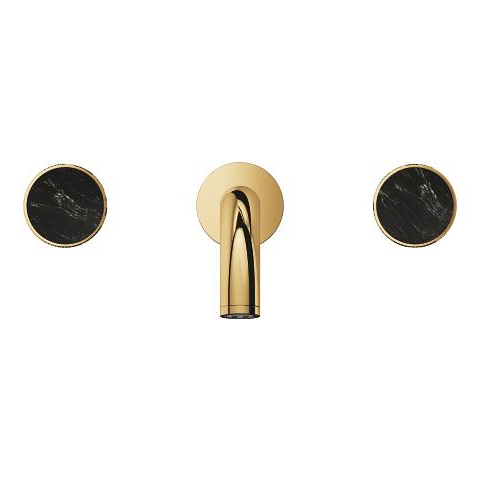

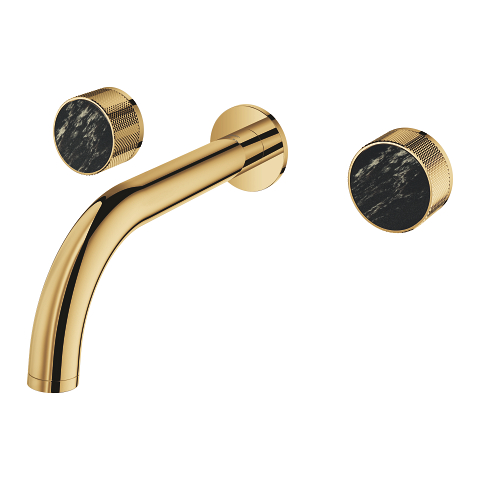

7 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
