Rapid SL Element for WC, 1.13 m installation height
GROHE Rapid SL installation system with noise reduction and high-load pedestal
Choose an installation system for your wall-hung WC that offers total reliability and strength without any hassle for the fitter with the GROHE Rapid installation system for wall-hung toilets. Crafted with a high-load pedestal, the steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of a stud wall or free-standing in combination with an empty installation frame. Fitting will take next-to-no-time thanks to the GROHE QuickFix system, which requires no tools to connect hose, inspection shaft and water supply. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. The system includes a PVC outlet bend. To install this product, please purchase the 3855800M wall brackets. Choose from over 130 attractive flush plate designs to complete the installation.
- with flushing cistern GD 2, 6 - 9 l
- for free-standing installation, for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- suitable for installation of 70 cm toilets
- with fixed connections
- lockable
- fixing material
- 2 WC fixing bolts
- fixing device for ceramic
- distance of fixing bolts 180/230 mm
- 90° rotatable PVC outlet bend 100 mm
- spacer Ø 80 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l, containing following features:
- adjustment ex factory 6 l and 3 l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for the installation of the inspection shaft incl. protection during construction phase
- for vertical or horizontal use
- including wall brackets 38 558 00M for on-the-wall installation
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
- for easy flow regulation via inspection shaft without removing the valves please order flow manager 42 593 000 (sold separately)
CAD Data

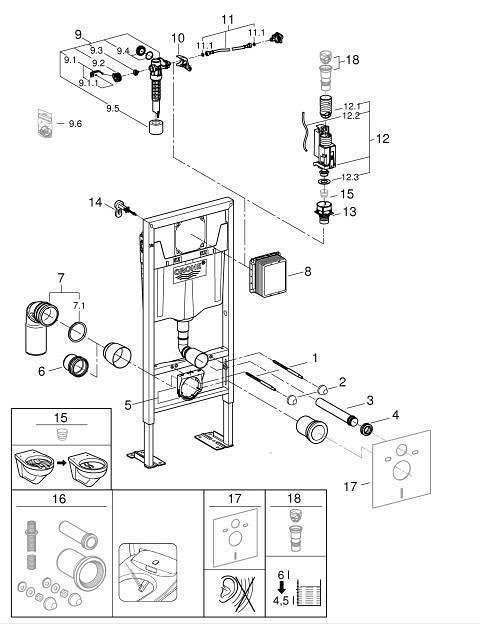

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | Basin fastening | 43511SH0 |
| 3 | Wall union | 43352000 |
| 4 | Connector | 37119000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Distance pipe 3" | 42766000 |
| 7 | PVC waste bend | 42216000 |
| 7.1 | Sealing washer | 4207700M |
| 8 | Inspection shaft | 66791000 |
| 9 | Filling valve | 37095000 |
| 9.1 | Lever | 43734000 |
| 9.1.1 | Seal | 4377000M |
| 9.2 | Valve head | 43536000 |
| 9.3 | Membrane | 4375800M |
| 9.4 | Screw cap | 43735000 |
| 9.5 | Valve FLOAT, 5 pcs. | 4379100M |
| 9.6 | Set of seals | 43722000* |
| 10 | Support device | 42246000 |
| 11 | Tube | 42233000 |
| 11.1 | Sealing washer | 0319100M |
| 12 | Dual Flush discharge valve AV1 | 42320000 |
| 12.1 | extension for Overflow pipe | 42313000 |
| 12.2 | Pneumatic hose | 42319000 |
| 12.3 | Seal | 42310000 |
| 13 | Valve seat | 42599000 |
| 14 | Wall brackets | 3855800M |
| 15 | Water connection | 48561000 |
| 16 | Flow restrictor | 42300000* |
| 17 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000* |
| 18 | Set for noise protection | 37131000* |
| 19 | 4.5 l adapter for GD2 | 42333000* |
| 20 | Accessory | 38779000* |
| 21 | Retro-fit set | 38796000* |
